- SUPER FAST Nationwide Delivery Any Size Gate/s despatched in approximately 25 working days from order.
Suffolk Garage Doors
£835.00
(please note all of our garage doors are not supplied with glass or beading)
To ensure that all our Garage doors are of the highest quality, our skilled craftsmen hand-make each Garage door to your bespoke measurements. Wortley Brothers are the only UK-based wooden gate manufacturer to offer custom sizes made to the millimetre. At nearly three inches thick (70mm), our Garage doors are constructed using a heavy-duty planed 95 x 70 mm framework, fully planed tongue and groove boards and marine grade stainless steel pins, employing time honoured carpentry skills, mortise and tenon joints are created which are then glued and dowelled to fortify them for maximum strength.
We only use the very best premium grade Scandinavian Redwood timber and African Iroko Hardwood. All this, and Wortley Brothers can fully manufacture and deliver your made-to-measure matching side panels in the United Kingdom fastest made-to-measure lead time.
- Premium Grade Wood
- Made-to-Measure
- nationwide delivery
Configure your product
Our Customers Love…
Configure & Buy
Configuration Guide
Height
Here are our three simple steps to help you measure the height for your new garage doors:
- Measure the total height from floor to top of the opening.
- Minus the frame (if you require one).
- Minus 15mm for the clearance gap above and below the garage door. This is to allow the garage door to open freely and not catch.
- Finally, these measurements will leave you with a total height for your garage door.
Example:
Total Measured Space = 1800mm
Minus Frame (if required): 1800mm – 70mm = 1730mm
Minus Clearance Gap: 1730mm – 15mm (5mm above, 10mm below doors) = 1715mm
Total Height to Order = 1715mm
We will manufacture your gate to the exact height measurement you order, without deducting any tolerances or gaps. Therefore, it’s important you take these off in your own measurements.
Width
Here are our four simple steps to help you measure the width for your new garage doors:
Measure the total space to fit everything into.
Minus the measurement for the frame each side (if you require one).
Minus your clearance gap, which will be 5mm each side and 10mm between the doors, totalling 20mm. This is so the garage doors will not catch and can open smoothly.
Finally, these measurements will leave you the width of your garage door.
For double gates, the total measurement of the space where the gate will be is indicative of both gate leafs, and you will receive two gates that total the measurement you provide. For example, if you insert 3000mm width into the configuration (a final measurement you have taken, which accounts for expansion gaps), you will receive two 1500mm wide gate leafs.
When taking the width measurement, make sure you are measuring from the front view.
Example:
Total Measured Space = 3000mm
Minus Frames (if required): 3000mm – 140mm (2 x 70mm frames) = 2860mm
Minus Tolerance Gap: 2860mm – 20mm (5mm each side and 10mm between doors) = 2840mm
Total Width to Order = 2840mm
We will manufacture your gate to the exact width measurement you order, without deducting any tolerances or gaps. Therefore, it’s important you take these off in your own measurements.
Rebate Position

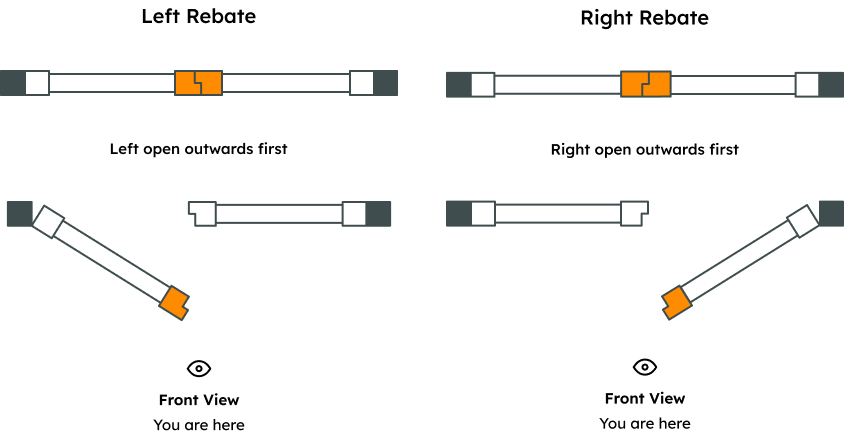

Our range of garage doors come with a rebate. This is an overlapping joint in the centre where the two doors meet and overlap. It is designed to eliminate gaps for a more secure and weatherproof close.
This feature offers a freedom of choice on how your garage door will open.
For example, if you choose a right rebate, you will open the right door outwards from the front view and towards you first, as you are stood in front of the doors. This means your left garage door has to be closed first, and the right door will sit securely on top. If you require the garage doors to open inwards, please contact us and we can advise.
Please refer to the diagram for a visual representation.
Wood Types
At Wortley Brothers, we offer two premium wood types. Both Scandinavian Redwood and African Iroko Hardwood are premium grade wood.
Our wooden gates and garage doors are handmade and manufactured in-house using these wood types by our team of skilled experts.
Scandinavian Redwood
This premium grade timber experiences minimal moving, swelling, shrinking or warping, which ensures that your new product will stand the test of time.
Our Scandinavian Redwood costs us 35% more than standard timber – a cost which we carry ourselves and do not reflect back in our prices to you.
African Iroko Hardwood
Treatments
Our range of natural stains and colours for your wooden gates or garage doors are available to purchase in two applications:
- Premium Factory Finish: We apply your chosen treatment in-house before delivery.
- At-Home DIY Finish: You purchase the coating to apply yourself.
These applications are also available for our colour matching service, where our treatments can be colour matched to suit your gates.
Home Finish
Our home finish treatment is a true DIY application. There’s no preparation needed; simply apply this treatment directly onto your gates using a brush or sprayer. After two hours, apply a second coat for ultimate protection. Dried and ready to use within a few hours.
Factory Finish
We are proud to offer a full factory finish to your new wooden gates or garage doors. Our team will professionally spray two high-build coats of your chosen treatment, ensuring ultimate protection and visual impact. Your new product will be sent to you fully treated and ready to install.
For any further guidance, please contact our friendly team today.
Got a Question?
At Wortley Brothers, we’re more than happy to provide our customers with all the answers, advice, and guidance they need.
Check out our FAQs to see if we’ve already answered your question, or get in contact with us and our friendly team will be in touch soon.
Frequently Asked Questions
Our wooden garage doors can only open either inwards and outwards due to their rebate joint design. When configuring, make sure you select which direction of opening you would like.
Please contact our friendly team if you need any further guidance.
Installing a new wooden garage door can be a challenge. Check out our free installation guide to help you, covering all the tips, tricks, best practices and challenges to avoid.
For any further assistance, please contact our team.
Our wooden garage doors can only open either inwards and outwards due to their rebate joint design. When configuring, make sure you select which direction of opening you would like.
Please contact our friendly team if you need any further guidance.
Check out our product range
What Our Customers Say…
Got an Enquiry?
If you’ve already got something in mind, send us your thoughts, inspiration images, or even a sketch, and we will get in touch to discuss your options.
